Stripe Payout Reconciliation

n8n demo · All data is synthetic

I built this as a small demo to work through a problem I know well from payments: proving that the money a processor says it paid out actually reached the bank. I spent years as a software engineer at i2c working on card programs, and now I work as a fintech/payments PM. In both roles, reconciliation is where the edge cases show up: deposits that land a few days late, fees taken twice, missing credits, duplicates.

I generated Stripe-style payouts, balance transactions, and a bank statement, then seeded each of those cases on purpose. Next I built an n8n workflow that matches payouts to bank lines by amount and a date window, labels each exception with a plain reason, and writes out a report and a short summary. A check script confirms that it catches exactly the cases I planted. All of the data is synthetic and this is a demo, not a production system, but it shows how I think about matching rules and exception handling, and why it's worth explaining every exception rather than just counting them.

Open Miro board Download workflow JSON

How it works

A Stripe payout and the bank deposit it creates often don't line up cleanly. Deposits land a day or more after the payout date, fees get deducted twice, a deposit goes missing, or the bank shows the same credit twice. Finance teams usually catch this in a spreadsheet. This workflow does the matching in n8n and writes a report that flags each exception with a reason.

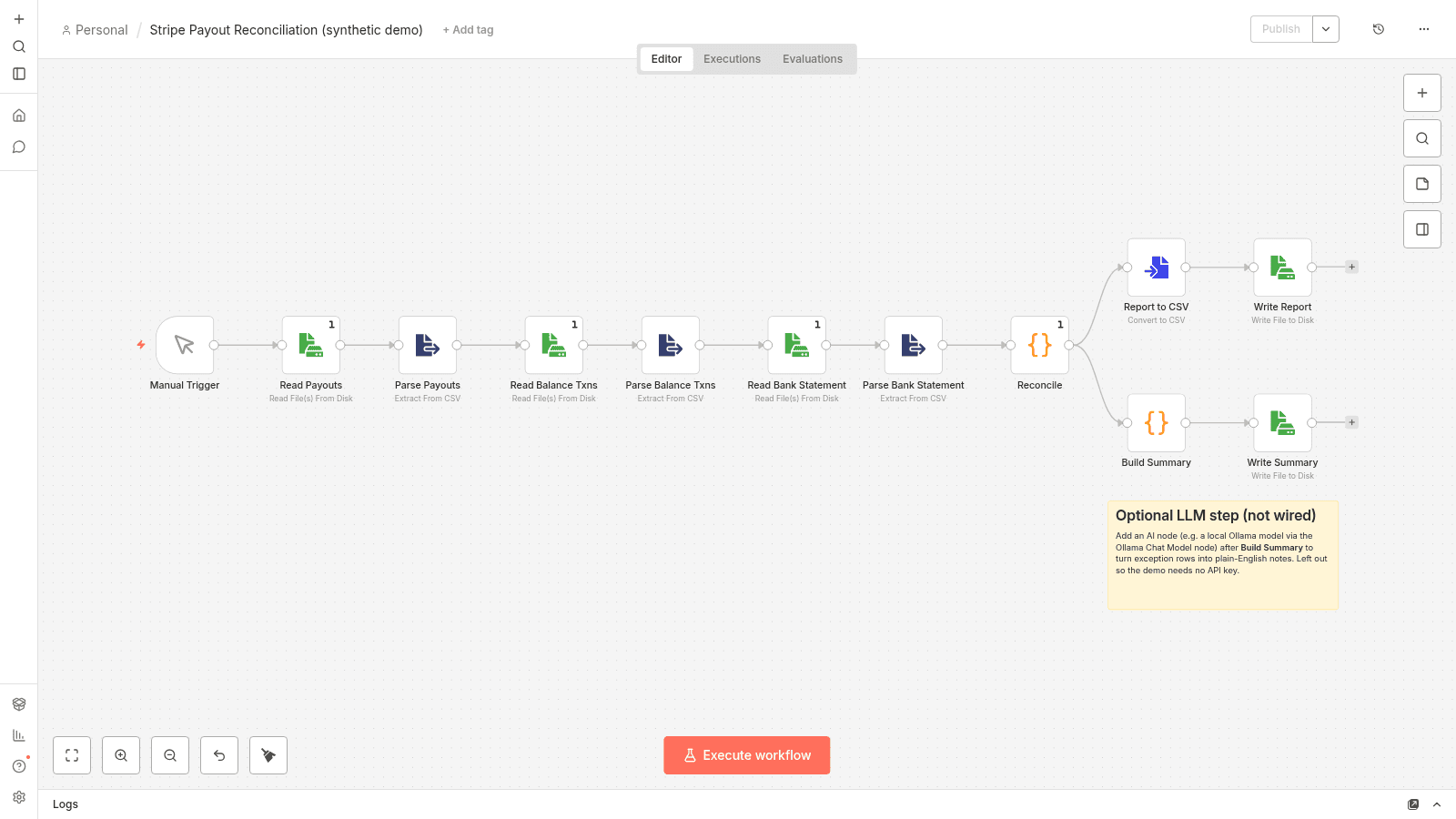

Manual Trigger → Read/Parse Payouts CSV → Read/Parse Balance Transactions CSV → Read/Parse Bank Statement CSV → Reconcile (Code) → [Report CSV, Summary .md]

Matching rules

Only positive bank credits whose description contains “STRIPE” are considered. Each bank line can be used once; the closest date wins.

MATCHED

The bank amount equals the payout amount and the bank date is within ±2 days of the payout arrival date.

TIMING_DIFFERENCE

The amount is exact, but the bank date is 3–7 days away from the payout arrival.

AMOUNT_OFF_BY_FEE

The bank amount differs from the payout by exactly the payout fee, within ±2 days.

MISSING_DEPOSIT

No bank credit found for this payout.

DUPLICATE_DEPOSIT

A bank line that repeats an already-matched amount within the date window.

UNMATCHED_BANK_CREDIT

A Stripe-labelled bank credit with no matching payout.

LEDGER_MISMATCH

The sum of charge net values in the balance transactions doesn't equal the payout amount.

Demo

A short screen recording of the workflow running in n8n on synthetic data.

Screenshots

From the planning board to the final output.

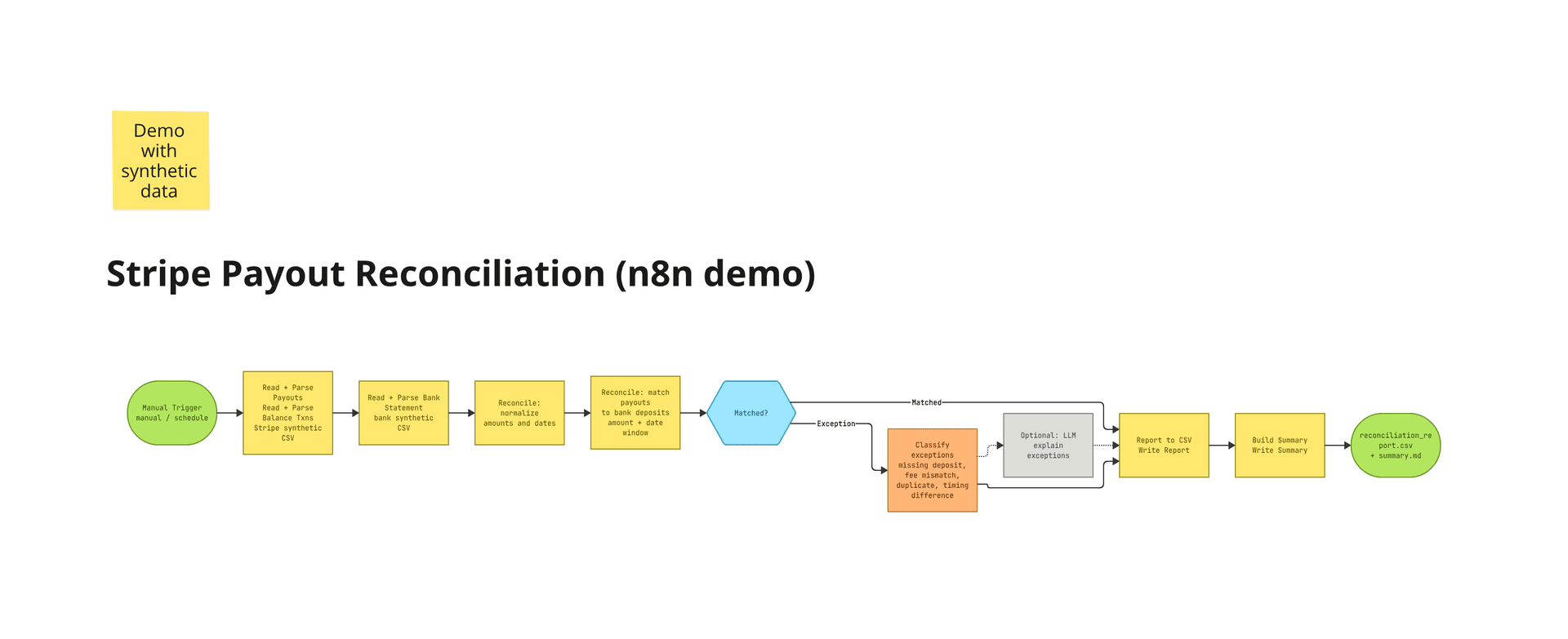

Miro board showing the reconciliation flow — The reconciliation flow in Miro

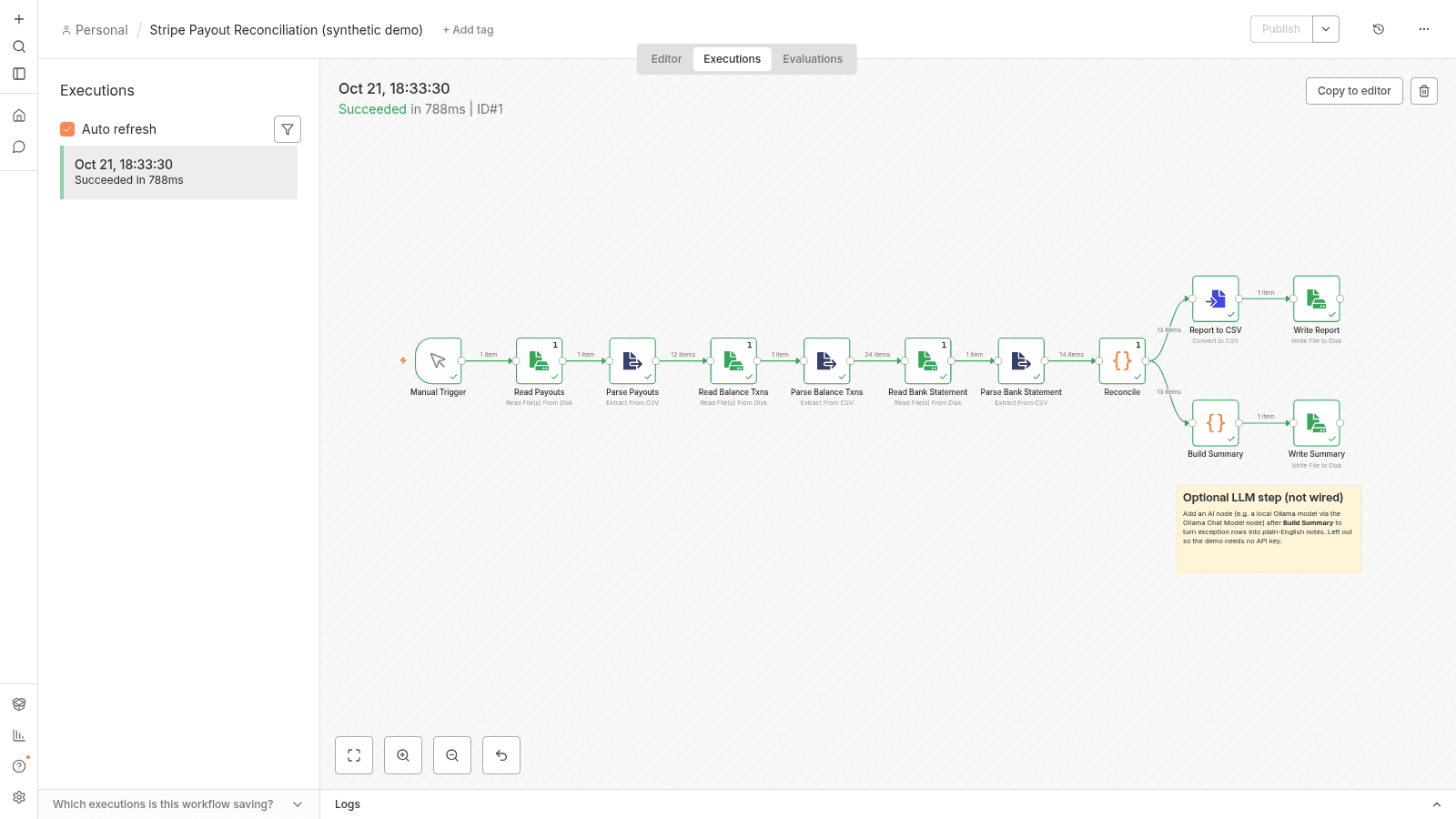

Successful workflow execution in n8n — A successful workflow execution

Stack

n8n 2.8.4 (self-hosted via npm, SQLite), Node 20, Python 3 for data generation and checks. The file paths in the workflow are absolute; edit them if you move the folder.

Optional LLM step

The canvas has a sticky note marking where an AI node could go, for example the Ollama Chat Model node running a free local model. It would turn exception rows into plain-English notes. It isn't wired in, so the demo runs without any key.

Seeded test cases

The synthetic data includes deliberate mismatches to verify the reconciliation logic:

po_005 is missing from the bank statement
po_007 is off by exactly its fee
po_009 has a duplicate deposit
po_011 lands 4 days late (timing difference)

A verification script confirms the output reports exactly these cases.

Resources

Miro board Workflow JSON

This is a demo built with synthetic data. No real Stripe account, bank, or customer data is used, and no paid service or API key is needed.
